How To Install A New Door Jamb

Are you redecorating or remodelling your home? With tons of things to get done, it can definitely be overwhelming. Usually one does not think of installing a new door jamb as part of the process, but in some instances, you may need to do so. Read on to learn how to install a new door jamb and discover the installation process, prices and reinforcement as well.

What is a Door Jamb?

In the realm of construction and renovation, the term “door jamb” frequently surfaces, yet its pivotal role and intricacies may elude even seasoned enthusiasts. A door jamb is essentially the framework that forms the sides and top of a door frame. This structural element is not merely a passive participant but plays a critical role in both the functionality and aesthetic finesse of door installations.

Overview of a Door Jamb

At its core, a door jamb serves as the anchorage for the door itself, providing the points of attachment for hinges on one side and a latch or lock mechanism on the opposing side. This architectural feature is composed of two vertical components (the legs) and a horizontal top piece (the head), which together define the door’s boundary and operational space.

Understanding the Significance of a Door Jamb Kit

The evolution of construction practices has given rise to the interior door jamb kit—a streamlined solution designed to simplify door installations. These kits offer pre-cut pieces tailored to standard door sizes, merging efficiency with precision. They cater to a range of material preferences and aesthetic tastes, from sturdy wood to durable composite materials, ensuring that there’s an option for every project’s requirements.

Selecting the Right Door Jamb Sizes

Matching door jamb sizes with the door dimensions is more than a matter of form—it’s crucial for functional harmony. The standard height for residential doors is typically around 80 inches, but variations abound, necessitating a careful selection process. It’s imperative to consider the door’s width and thickness as well, ensuring a snug fit that allows for smooth operation while staying aligned with the design vision.

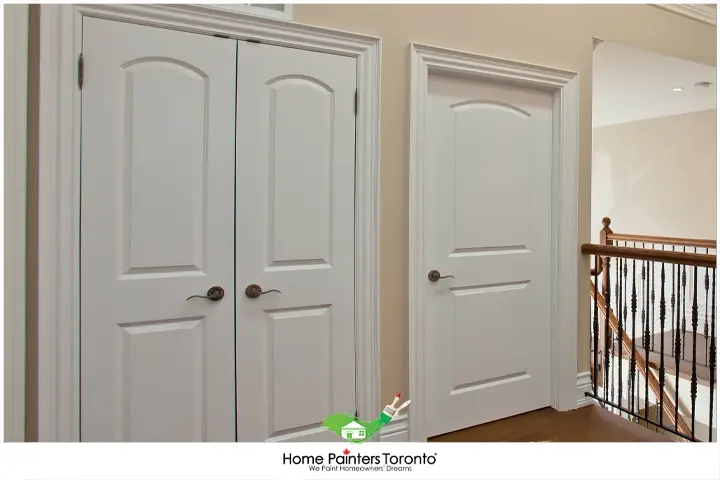

Full Shot Door Jamb

Materials That You Will Need:

  • Safety Goggles
  • Circular Saw
  • Hammer
  • 2d & 8d nails
  • Electric Drill
  • Drill Bits
  • Carpenter’s Square
  • Door Stop Molding
  • Shims
  • Level
  • 36″ Header – Interior Door Jamb Piece
  • 84″ Side Legs – 2 Interior Door Jamb (2 Pieces)
  • Pencil
  • Work Table/Space

1. Measure and Cut

  • Put on your safety goggles and measure the top width of the opening of the door.
  • Pencil in the measurement on one of the 84″ door jamb pieces.
  • With the carpenter’s square, place it on the marked measurement and mark it off by drawing a line for guidance.
  • With the circular saw, carefully cut the door jamb piece to that measurement
  • On each side measure the floor to the door opening and subtract 3/4 inch to compensate for the gap.
  • Pencil in the measurement of this on the other piece of the 84″ door jamb.
  • Carefully cut it with the circular saw.
  • Set aside the lumber.

2. Installation of Door Jamb

  • The shorter piece of lumber will need to be laid out on a work table so that, with your drill, you can drill 4 holes through it. Now insert an 8D nail and tack it in without the nail going right through.
  • Using your level, level off the piece of lumber at the top of the door opening. You can use the shims to level it off by putting them between the lumber and the door opening.
  • Measure the width of the door and install the two pieces of door jamb on both sides of the door opening.
  • Be sure to use 8D nails because they need to be 1/8″ bigger than the door itself. Level and install carefully.
  • Once again, measure 1 /8″ from the front edge of the door jamb and pencil in the measurement line. This front edge of the door is where the door will open into the room. Making a few different measurement marks by moving the tape measure up and down will help guide where the door is to open. Repeat this method for the overhead piece of lumber as well.

3. Secure

  • You need to measure the space from the top between the two door jambs and then cut a piece of doorstop material the same length.
  • Secure to the top of the door jamb based on the marks that you made prior and use 2D nails, making sure that the flat side faces the door.

Hint:

  • The price to install a door jamb varies based on the size and materials used. If there is one opening, then it could range from $140-$230. Having the right tools for this on hand will save you money, but if you don’t have them, you may have to borrow, rent or buy so make sure to factor in a flexible budget.

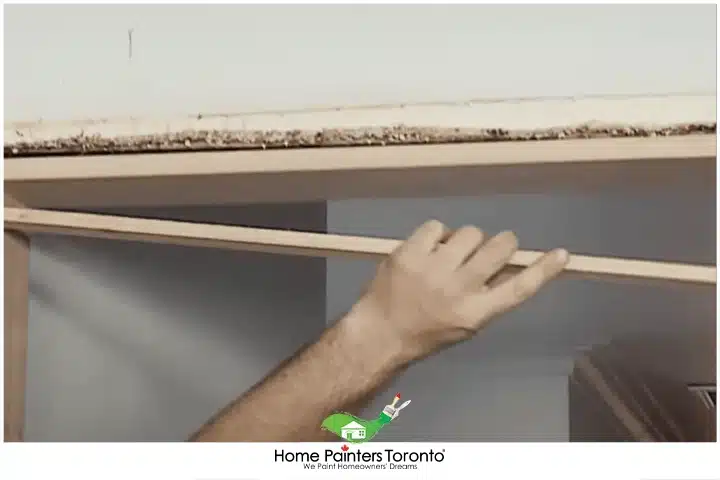

Installation of door jamb

Conclusion

The door jamb, while often overlooked, is a foundational component in both the structural integrity and design appeal of door installations. By understanding the nuances of door jamb kits and sizes, as well as the importance of material and aesthetic choices, individuals involved in construction and renovation can navigate their projects with confidence. This balance of practical considerations and visual harmony ensures that the end result is both functional and fitting to the space it inhabits, encapsulating the essence of informed, thoughtful decision-making in the construction domain.
